• 1x TIVA Heater™
• 1x Remote including battery
• Pair of Adjustable stainless steel wall mounts

• For wall mounting, the lowest part of the heater must be located at or above a minimum height of 1.8m from ground level, so that the heater cannot be touched when in operation.
• Always mount horizontally and do not position the heater at an angle of more than 90° and less than 45°
• The heater should always have a minimum clearance of 0.3m from adjacent walls and ceilings.
• The heater must be installed on the mounting brackets provided.
• Fasten the heater securely on the brackets using the nuts and bolts supplied.
• The brackets can be used to adjust the direction of the heater. Adjust the heater angle by loosening the two bolts on the wall mounting bracket. Tighten the bolts again when the desired angle is reached.

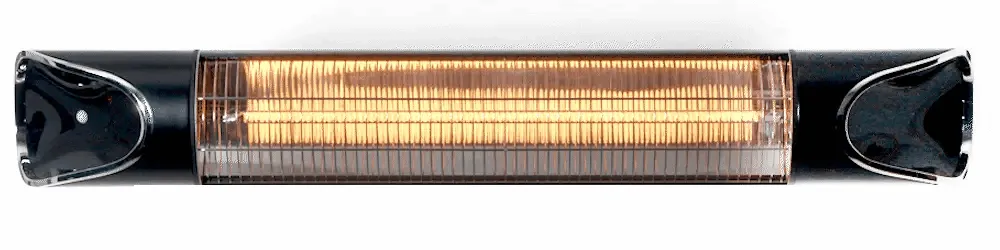

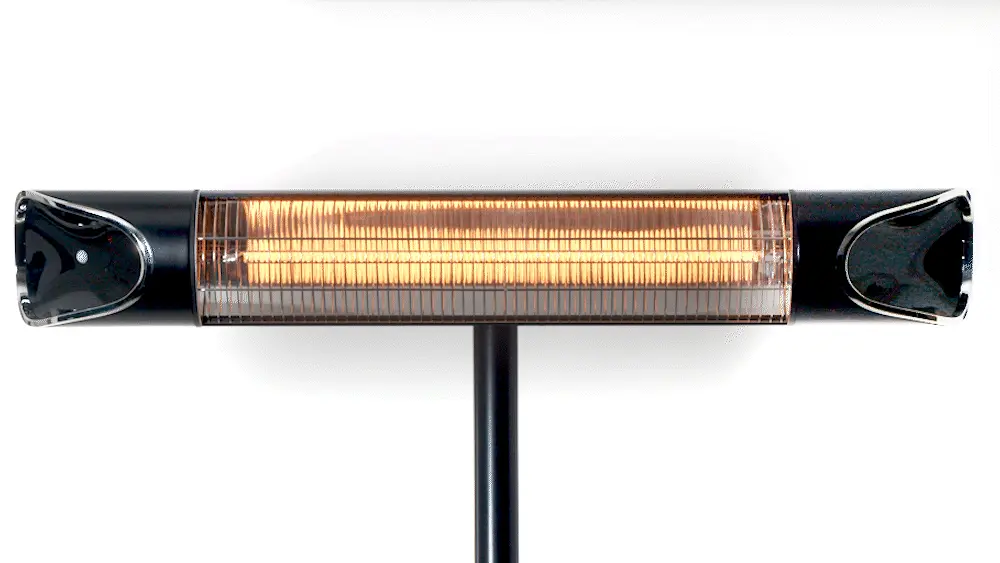

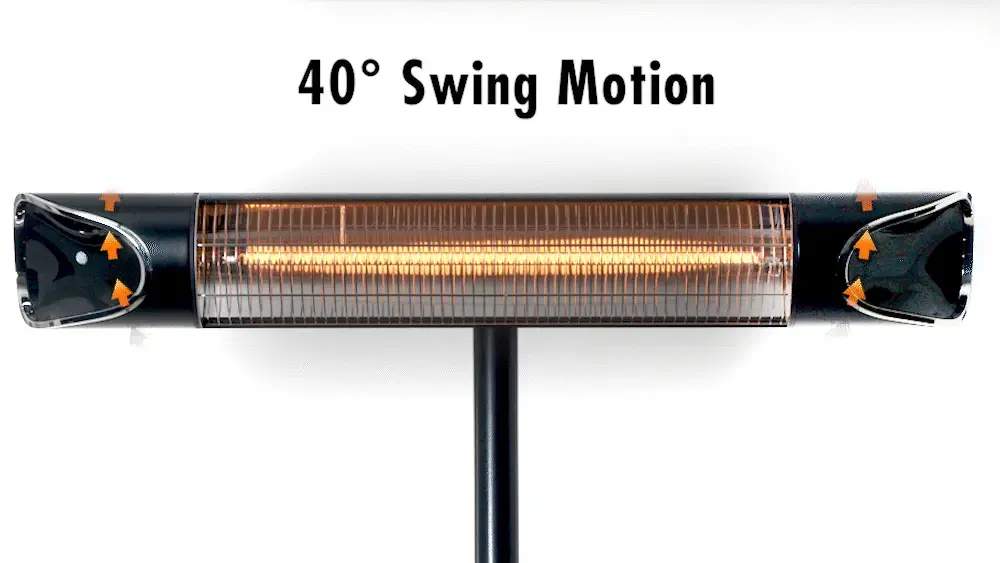

TIVA™ Swing Heater

• Voltage (V) : 220-240V AC, 50-60 Hz
• Power (W) : 2000W
• Water Ingress Protection :Model TIOH = IPX4, =TIOH_V2 = IP55*
• *Refer to Page 12 of your Manual to confirm Model number and Rating.
• Water Ingress Protection : IP55/IPX4*
• Dimensions W x H x D (mm) : 900 x 130 x 90
• Weight (kg) : 3.1kg
• Class : I
• Power cable length : 2.77 metre

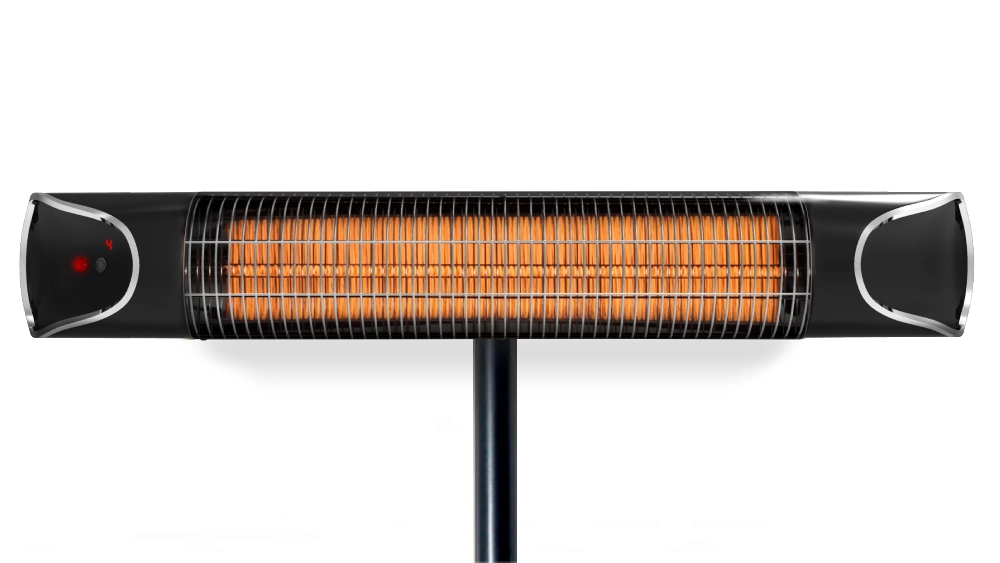

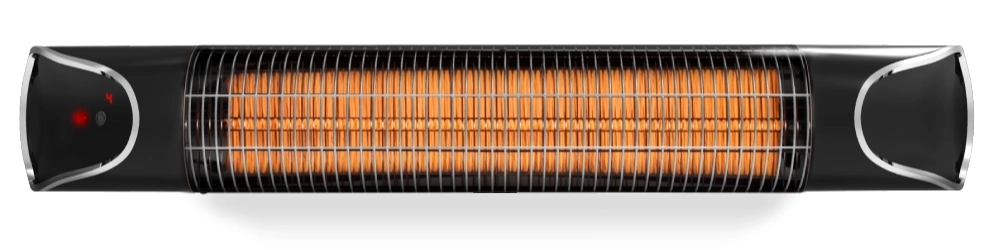

TIVA™ Standard Heater

• Voltage (V) : 220-240V AC, 50-60 Hz
• Power (W) : 2000W
• Water Ingress Protection : IP55/IPX4
• Dimensions W x H x D (mm) : 900 x 130 x 90
• Weight (kg) : 2.6kg
• Class : I
• Power cable length : 1.8 metre

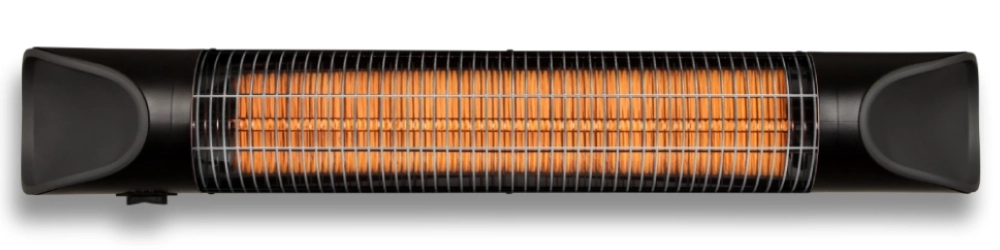

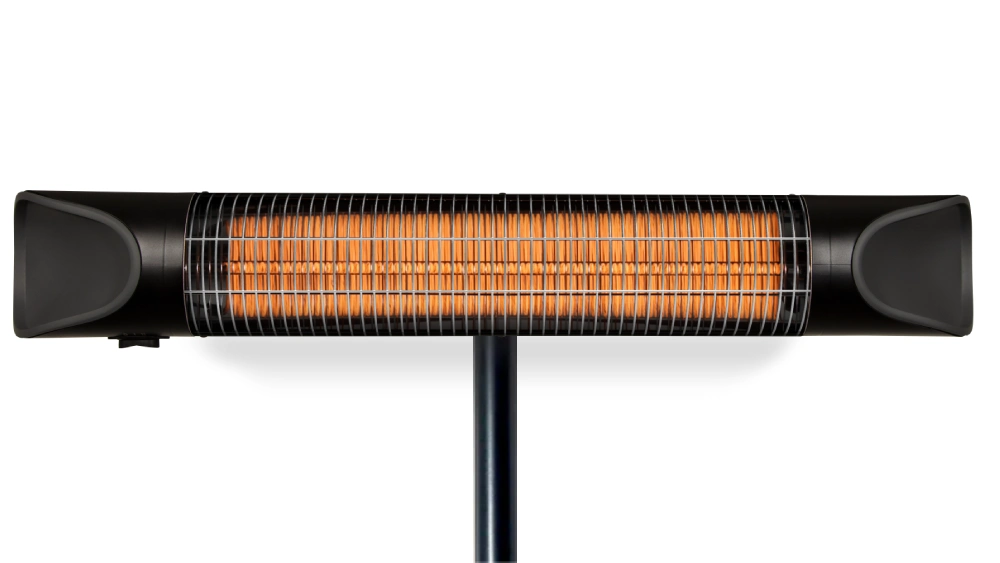

TIVA™ Basic Heater

• Voltage (V) : 220-240V AC, 50-60 Hz
• Power (W) : 2000W
• Water Ingress Protection : IP55
• Dimensions W x H x D (mm) : 900 x 130 x 90
• Weight (kg) : 2.2kg
• Class : I
• Power cable length : 1.8 metre
• Power Levels 2 – High @ 2,000 watts and Low @ 1,000 watts
• No Remote, controlled by 3-way switch – OFF-Low-High

TIVA™ Plus Heater

• Voltage (V) : 220-240V AC, 50-60 Hz
• Power (W) : 2000W
• Water Ingress Protection : IPX4
• Dimensions W x H x D (mm) : 1190 x 130 x 90
• Weight (kg) : 3.5kg
• Class : I
• Power cable length : 2.77 metre

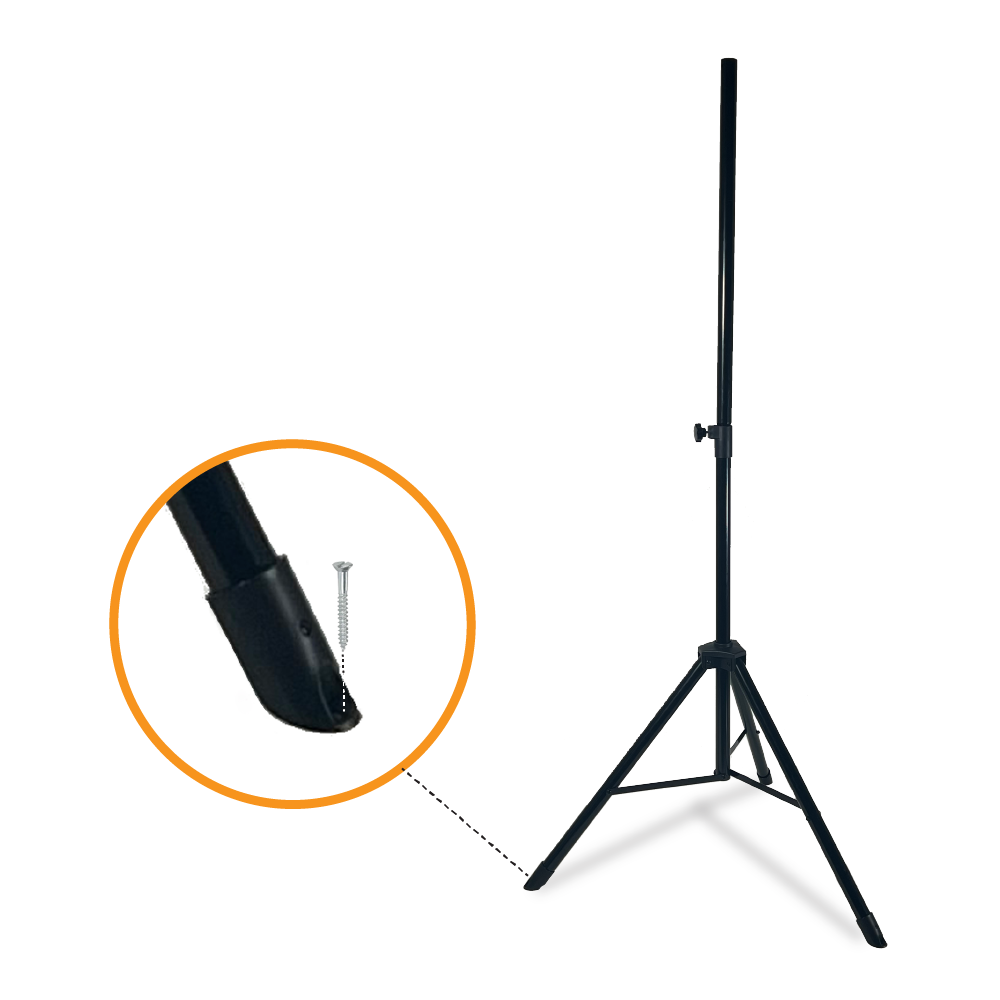

Tripod Stand

• Black Powder-coated steel.
• 88cm from foot to foot i.e. the footprint is a 3-sided triangle with each side measuring 88cm.
• Supplied with fittings to accommodate the mounting brackets supplied with your Heater.
• Designed with feet that must be fixed to the floor, screws included.

Yes! Your TIVA Heater™ comes with a 1 year warranty

The only maintenance required by the owner is cleaning of the external surfaces. Use a damp cloth to wipe the outside of the heater. If the heater has collected dust or dirt inside the unit or around the heating element, spray it with clean water to remove the debris. We recommend cleaning the stainless-steel grill regularly by wiping it with a damp cloth using mild soapy water to remove corrosive airborne compounds such as salt and pollutants.

Use in humid or seaside areas may result in the development of light surface rust on the stainless-steel grill due to exposure to moisture and environmental conditions. This is considered normal wear and does not impact the operation or safety of the appliance. Where airborne compounds have caused surface deterioration use a dishwashing scouring pad or similar fine-grade steel wool to remove the marks. When the heater is not in use, use a protective cover or store in a dry, sheltered location where possible.
